KK Axis System Features & Configuration
The KK Axis system is engineered for demanding motion applications where performance, precision, and flexibility are critical. Each axis module delivers high dynamic performance with smooth, repeatable motion, making it ideal for automation, assembly, and positioning tasks. Precision guides and carefully matched drive components minimize backlash and deflection, helping you achieve accurate, consistent results even under varying loads and duty cycles.

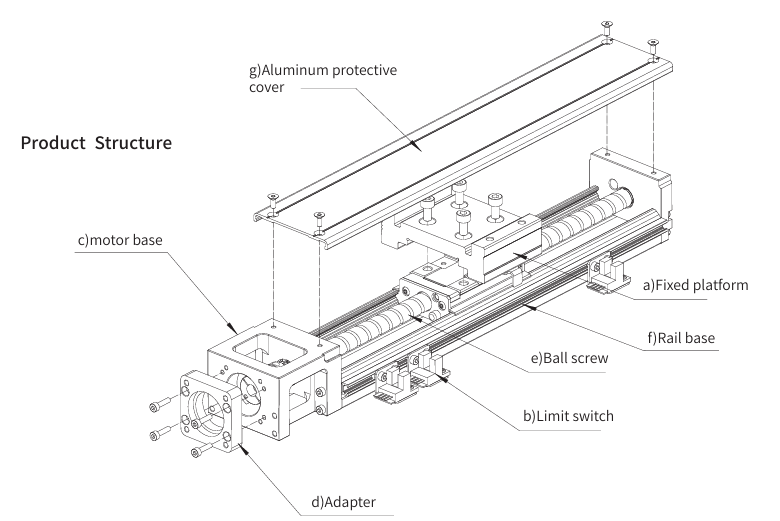

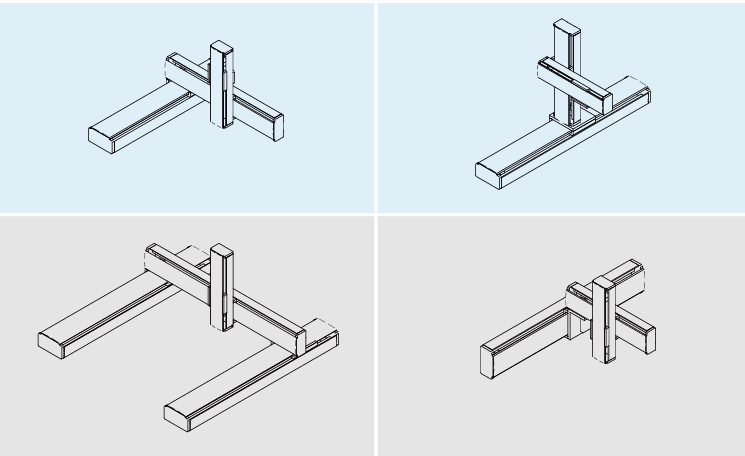

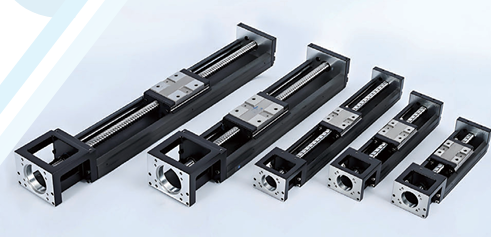

A modular design allows you to select exactly the components you need, from different carriage options to protective covers and mounting interfaces. The KK Axis is available in multiple sizes and lengths, so you can match stroke and load capacity to your application instead of compromising your design. Standardized mounting patterns and accessories simplify mechanical integration into frames, gantries, and custom machines.
Compatibility with different motor flanges is built into the system. You can pair the KK Axis with a wide range of servo and stepper motors using standardized flange interfaces and couplings. This gives you the freedom to use your preferred motor brand, power rating, and feedback technology while keeping the mechanical interface straightforward and repeatable across projects.
The configuration process is designed to be simple and fast, reducing engineering time and avoiding trial‑and‑error. In practice, you follow a few clear steps: first, choose the axis size based on required load, speed, and precision. Next, define the stroke length from the available standard lengths, or select a custom length within the supported range. Then, pick the motor interface by selecting the appropriate motor flange pattern and coupling style from a predefined list that covers the most common motor families.
Once the basic axis and motor interface are defined, you can add options such as limit switches, cable management, and mounting brackets. A guided configuration tool or datasheet tables help you verify compatibility and generate a complete part number. This structured approach minimizes calculation errors, shortens design cycles, and makes it easy for teams to reuse proven configurations across multiple machines or variants.

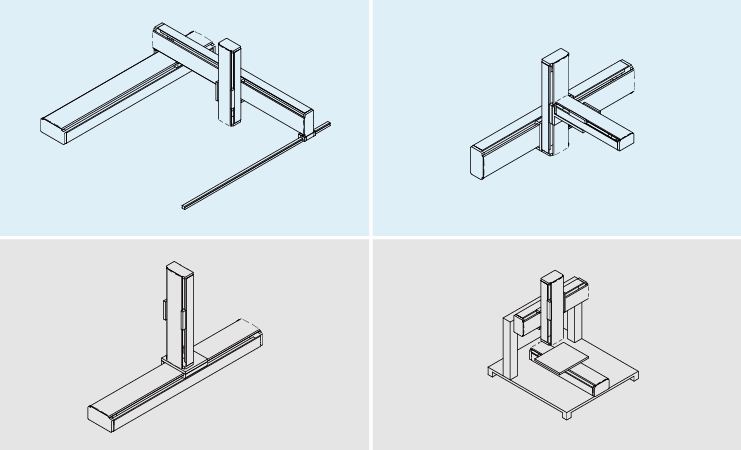

From a practical standpoint, the KK Axis system helps you reduce engineering time by turning complex motion design decisions into a series of straightforward selections. The modular catalog and clear configuration rules mean you spend less time on custom drawings and more time on application optimization. Flexibility is built in, so the same platform can support different payloads, speeds, and accuracy requirements simply by changing size, length, or motor flange options.
Quick access to stock is another key benefit. Because the KK Axis uses standardized modules and popular motor flange patterns, many configurations can be supplied from stock or with short lead times. This supports rapid prototyping, faster machine builds, and easier maintenance, since replacement units can be ordered using a single, well‑defined part number. Overall, the KK Axis system combines high performance and precision with a configuration process that makes specifying and integrating linear motion both efficient and reliable.
