Linear Guideways Accessories

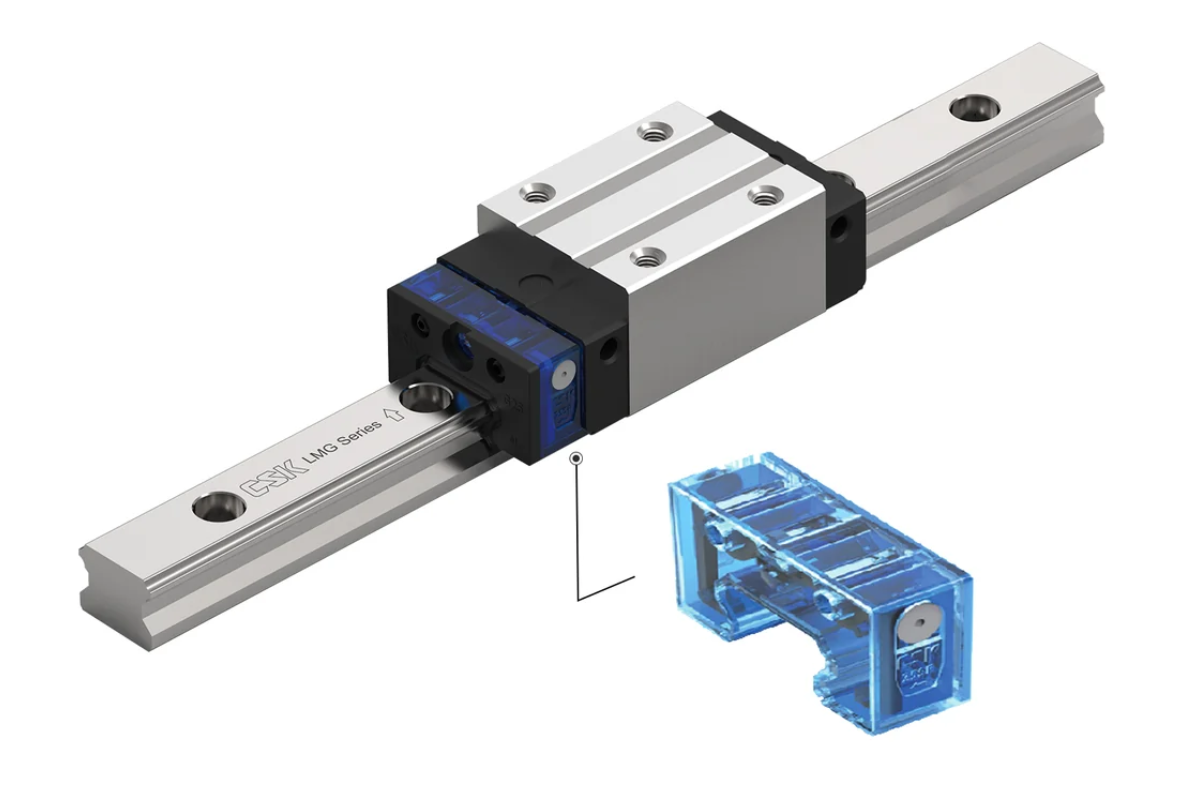

Self-lubricating GR series module
Features
The GR series can be used with grease, supporting a wide operating temperature range. This significantly extends maintenance intervals, lowers maintenance costs, and requires only a small amount of lubricant, making it more environmentally friendly. The resulting low operating costs also help extend the service life of the slides.
Lubrication tanks are available for all LMG carriage sizes 15–55 and for LMGQ sizes 15–25.
Clamps for CSK linear guideways

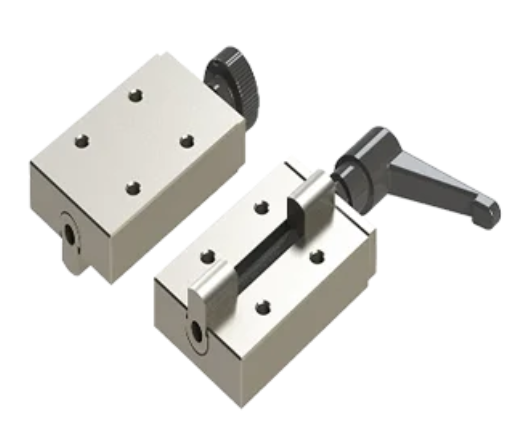

LMR-0816 (for miniature guides)
Features: The NSB linear guide clamp combines a linear guide block with a connector, enabling the block to be securely locked at any position along the rail. These linear guide clamps are compatible with linear guides from all major brands. The LMR linear guide clamp (Micro Type) series covers sizes from 8 mm to 16 mm.

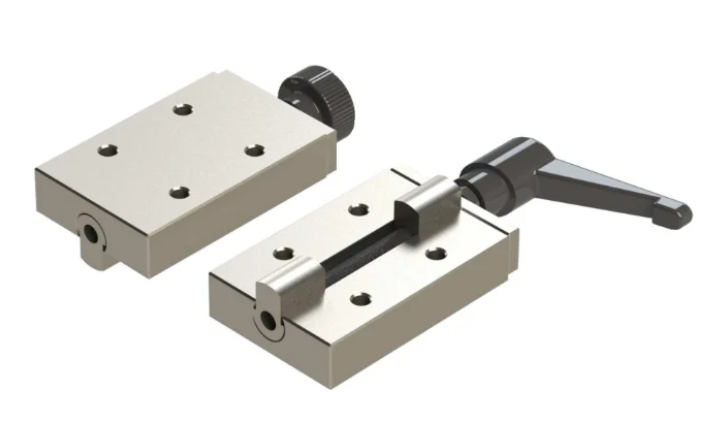

LAR-1428
Features NSB linear guide clamp combines a linear guide block with a connector, allowing blocks to be securely fixed at any position along the rail. These linear guide clamps are compatible with linear guides from all major brands. The LAR linear guide clamp (medium/heavy load type) range covers sizes from 14 mm to 28 mm and is designed to fit LMG/Q guides in sizes 15–25.

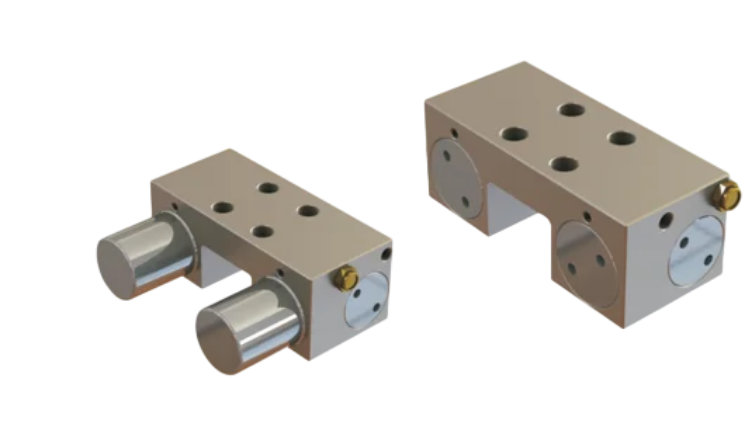

LKG(R)15-55
Features
CSK slide rail fixers/clamps use a wedge block expansion principle to achieve reliable clamping through air pressure. The compact structure and innovative design eliminate rigid impact during clamping and allow direct connection to the worktable without changing its dimensions. They are ideal for pneumatic clamping of moving shafts, available in sizes from 15 to 55 mm, and compatible with slide rails from various brands.
