Choose the axis size from the required load, speed and precision.
Home / Linear axes / KK axis systems
KK axis systems
Compact, modular axes for automation, assembly and positioning. Precision guides and matched drive components keep backlash and deflection low, so the motion stays accurate under changing loads and duty cycles.
Pick the parts you need

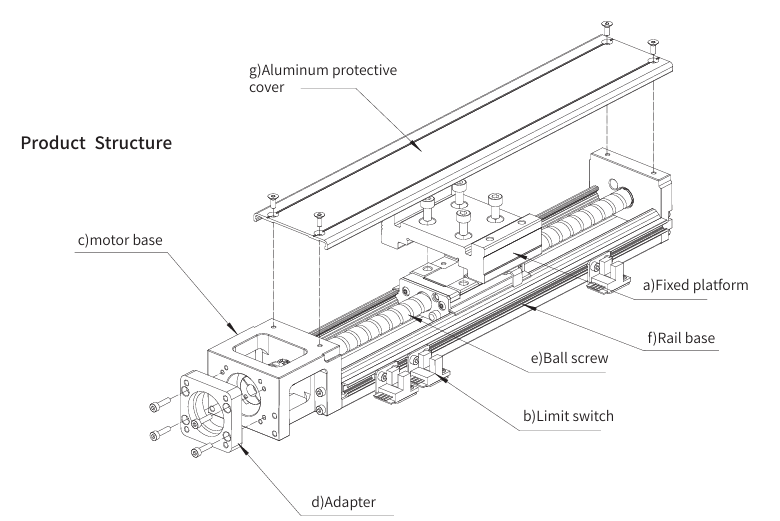

The KK axis is built from modules: carriage options, protective covers and mounting interfaces. It comes in several sizes and lengths, so you can match stroke and load capacity to the application instead of compromising on the design.
Standard mounting patterns and accessories make it simple to fit the axis into frames, gantries and special machines. Motor flanges and couplings fit a wide range of servo and stepper motors, so you can keep your preferred motor brand.
How to configure a KK axis
A few clear choices instead of custom drawings. The datasheet tables, or a configuration tool, then give you a complete part number.
Stroke
Pick a standard stroke length, or a custom length within the supported range.
Motor and options
Select the motor flange and coupling, then add limit switches, cable management and mounting brackets.

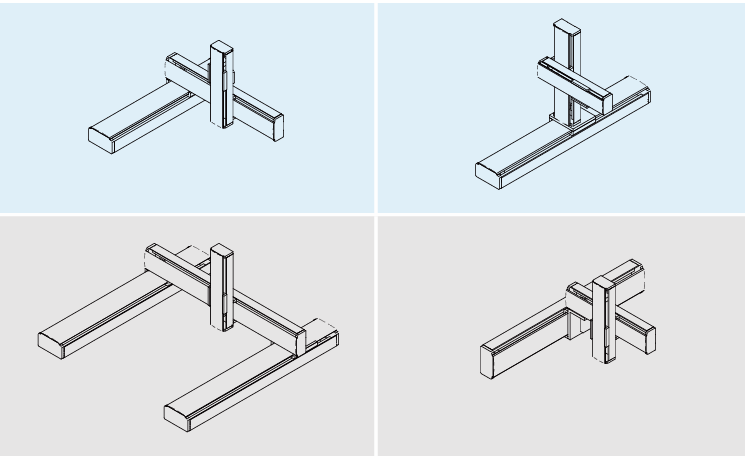

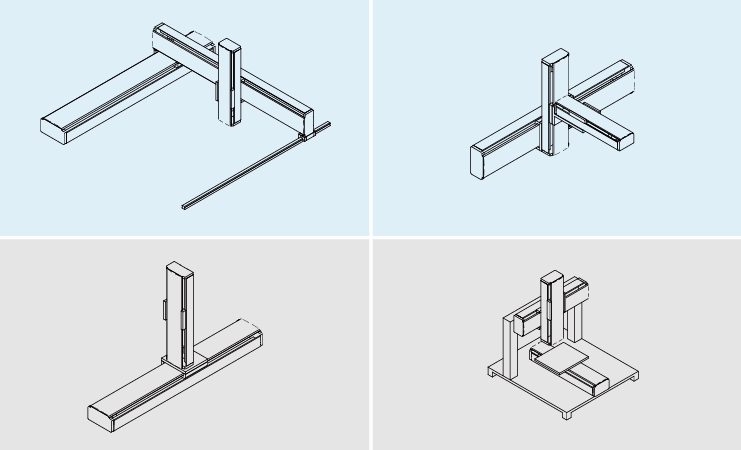

Single axis or multi-axis
The same platform builds X, XY and XYZ systems. Teams can reuse proven configurations across machines and variants, which reduces calculation errors and shortens design cycles.
Fast from stock. Because the KK axis uses standard modules and common motor flanges, many configurations can be delivered from stock or at short notice. That helps with prototypes, faster machine builds and easy replacement, since a spare unit is ordered with a single part number.
