LINROX offers profile rail guides from three manufacturers, so we can match quality, price and delivery time to each job. Compared with sliding systems, a linear guideway has only about 1/50 of the friction, which gives high precision and rigidity, especially combined with a precision ball screw.
Very high quality, a wide range of options and accessories, and an attractive price level.
Excellent quality and low noise, fast delivery from EU stock, and a full linear axis programme.
Premium Korean quality, excellent coating options and fast delivery from EU stock.
The CSK range covers standard four-row ball guides, wide and miniature rails and roller guides for heavy loads. Click a series for the full data on the manufacturer’s site.

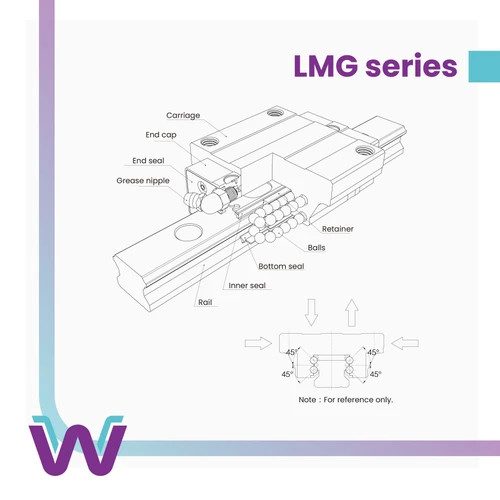

The standard CSK guideway. Four rows of balls at a 45° contact angle carry loads equally in all directions, so it can be mounted any way round. A self-aligning function compensates for small assembly errors and gives precise, smooth motion.

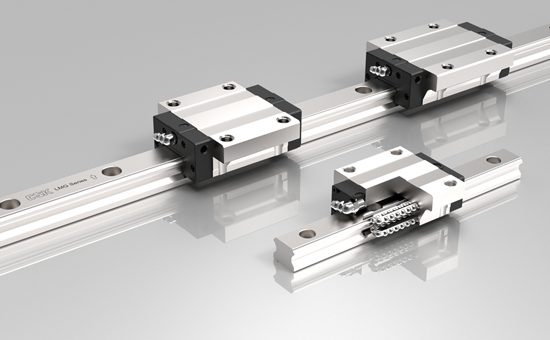

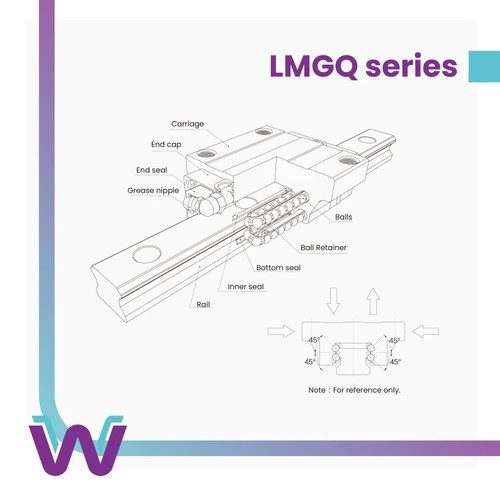

A standard guideway with a ball retainer system. Four rows of balls at 45° support radial, reverse radial and lateral loads equally, with high rigidity and load capacity. Like the LMG, it is self-aligning and can be mounted in any orientation.

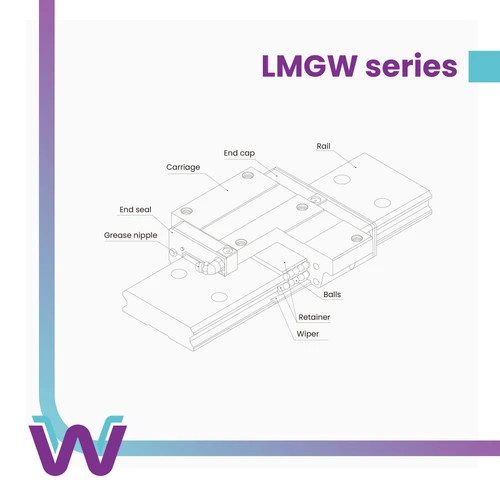

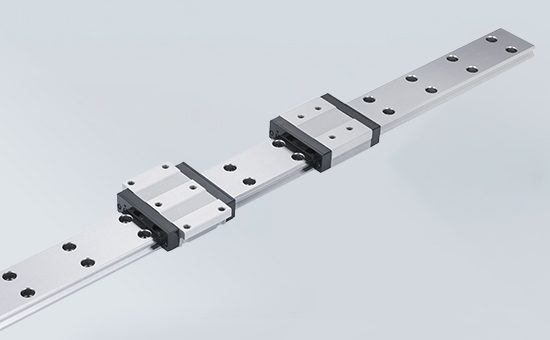

A four-row wide rail with a 45° contact angle, equal load capacity in all four directions and self-alignment. The wider rail and lower height give very high torsional rigidity, so a single rail is often enough where space is tight or torque loads are high.

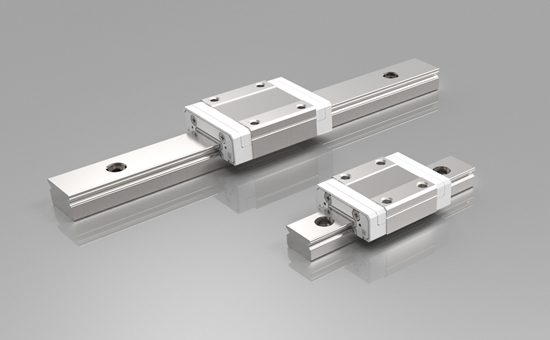

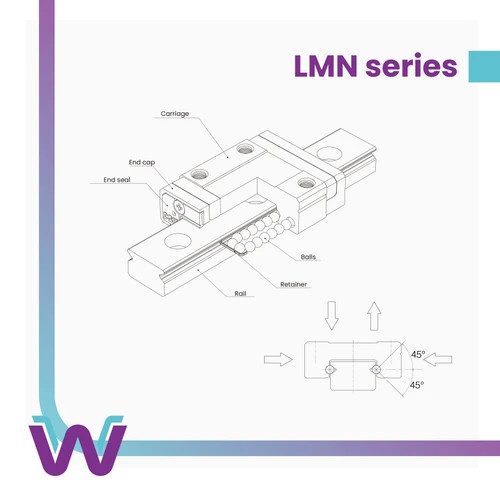

Miniature rails with two rows of balls in a Gothic-arch four-point contact, giving load capacity in all directions with high rigidity and precision. Ideal for small automated equipment where size and weight matter.
The wide LMNW version suits single-axis equipment that must take loads from every direction. A ball-retaining design and interchangeable carriages keep the accuracy consistent.

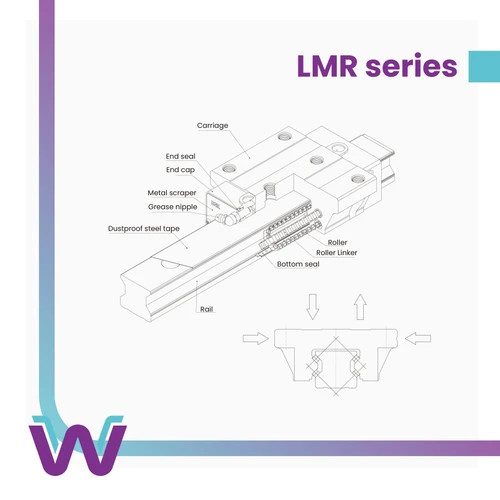

Cylindrical rollers instead of balls change the contact from point to line, which raises load capacity considerably and keeps elastic deformation very low under heavy load. Four rows in a 45° DB arrangement give excellent rigidity in all four directions.
An internal roller synchroniser removes the friction between neighbouring rollers. That lowers travel resistance and noise and makes the motion smoother. The preload is tuned for the best balance between resistance, rigidity and service life.

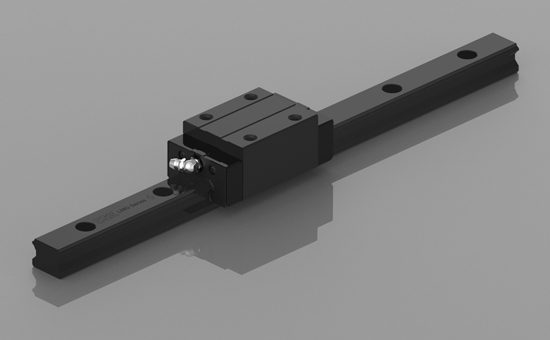

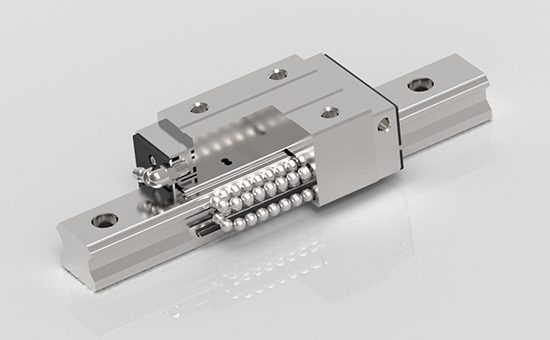

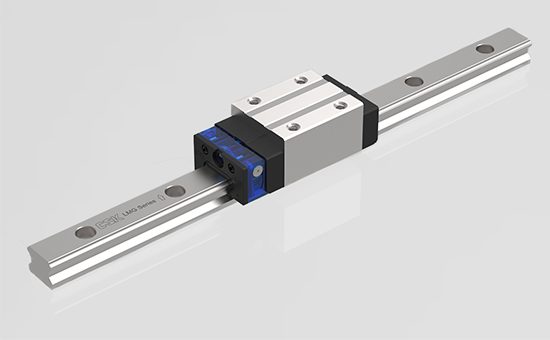

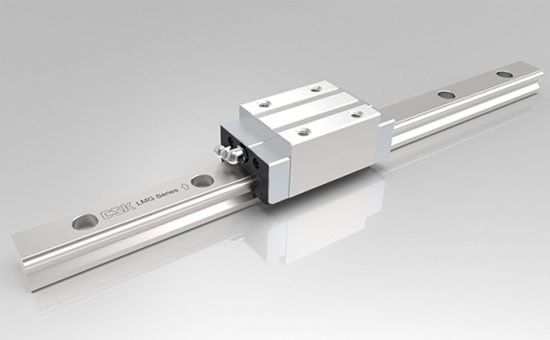

Upgrades for the standard carriages when the environment is hot, dirty or corrosive.
WON ST is a high-performance guideway system for demanding applications where precision, reliability and long service life matter. It is delivered in precision class H for accurate positioning and high repeatability.
All components are fully interchangeable, which makes maintenance, upgrades and changes to existing machines simple. Refined ball tracks and precise machining give low noise and smooth motion.
An innovative lubrication system extends relubrication intervals, often considerably, which lowers maintenance costs. WON ST is made in South Korea, and 3D STEP models are available for design work.
WON ST can be supplied with RoHS and REACH certificates, for projects with strict requirements on environment, traceability and compliance.
SHAC has worked in linear motion for more than a decade and today combines research, production and sales. In 2020 the company invested €5 million in a new 45,000 m² plant for ground and rolled ball screws and nuts. SHAC runs five production lines: rails, blocks, rolled ball screws, ground ball screws and ball nuts.
Before a sale, SHAC engineers use their own calculation system and a risk analysis to choose the safest and most cost-effective type. Every component is checked with FEA before production, and SHAC products carry professional certifications and patents.
SHAC Europe is based in Wangen, Switzerland, where products are stocked and machined for the European market.
SHAC also makes ball screws and support units. See SHAC ball screws.
Send us the part number, the application and what you are seeing. We will find the right standard part, or suggest an upgraded material or coating that lasts longer.
